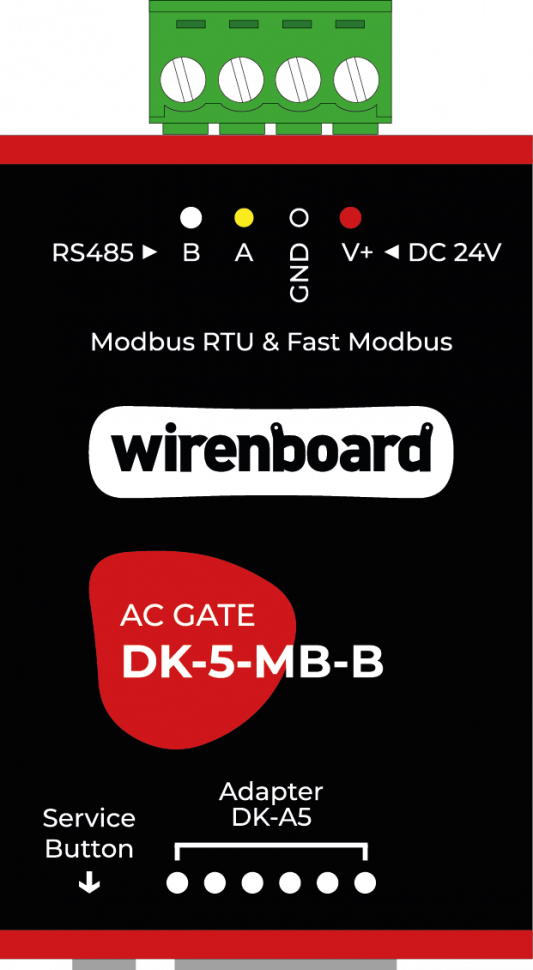

DAIKIN Modbus RTU AC GATE / DK-5-MB-B
SKU code: DK-5-MB-B
SKU code: DK-5-MB-B
SKU code: DK-5-MB-B
Stock in Germany
Pre-order only
Stock in Switzerland
Pre-order only
We offer three delivery options:
- FCA – you pick up from us
- DAP – we deliver, you do customs in your country and
- DDP – we deliver and we do customs clearance
Wire transfers must be made net of all bank charges. Currently, w accept wired transfer only. For more payment options please contact us on sales@smartsd.ch
Order by phone+41 79 787-62-13
Gateway for control and dispatching of DAIKIN air conditioning systems with P1 P2 connector, operating via the Modbus RTU protocol with support for the Fast Modbus function.
Compatible air conditioner types: wall-mounted, cassette, duct, floor-standing, floor-ceiling, ceiling-suspended, and built-in units.
Technical Specifications
- Interface – RS485
- Interface isolation – Galvanically isolated
- Protocol – Modbus RTU + Fast Modbus; address configured via software; factory settings indicated on the label
- Gateway dimensions – 60×36×15 mm (L×W×H) without terminal block; 70×36×15 mm (L×W×H) with terminal block
- Adapter dimensions – 40×31×13 mm (L×W×H)
- Power supply (recommended) – DC 24 V
- Baud rate – 9600 (default), 19200, 38400, 57600, 115200
- Stop bits – 2
- Parity bit – None (N)
- Power consumption – Max. 1 W
- Bus and power connection type – Screw terminal block
- Recommended wire cross-section with ferrules – 0.35–1 mm² (single wire), 0.35–0.5 mm² (double wire)
- Tightening torque – 0.2 N·m
- Operating mode – Continuous
- Operating temperature range – 0 to +40 °C
- Ingress protection rating – IP30
- Weight (with packaging) – 100 g
- Package contents – Box, device, DK-A5 adapter, adapter cable, air conditioner cable
