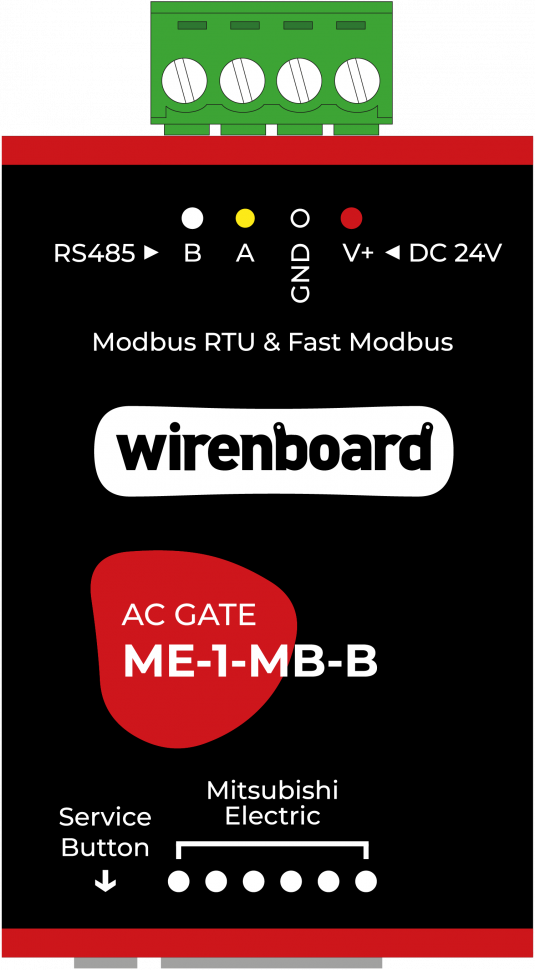

Mitsubishi Electric Modbus RTU AC GATE / ME-1-MB-B
SKU code: ME-1-MB-B
SKU code: ME-1-MB-B
SKU code: ME-1-MB-B
Stock in Germany
Pre-order only
Stock in Switzerland
Pre-order only
We offer three delivery options:
- FCA – you pick up from us
- DAP – we deliver, you do customs in your country and
- DDP – we deliver and we do customs clearance
Wire transfers must be made net of all bank charges. Currently, w accept wired transfer only. For more payment options please contact us on sales@smartsd.ch
Order by phone+41 79 787-62-13
Gateway for control and dispatching of Mitsubishi Electric air conditioning systems with CN105 or CN100 connector, operating via the Modbus RTU protocol with the option of control via Fast Modbus.
Compatible air conditioner types: split systems, duct, cassette, floor-standing, and ceiling-suspended units.
Technical Specifications
Interface – RS485
Interface isolation – Galvanically isolated
Protocol – Modbus RTU + Fast Modbus; address configured via software; factory settings indicated on the label
Dimensions – 60×36×15 mm (L×W×H) without terminal block; 70×36×15 mm (L×W×H) with terminal block
Power supply (recommended) – DC 24 V
Baud rate – 9600 (default), 19200, 38400, 57600, 115200
Stop bits – 2
Parity bit – None (N)
Power consumption – Max. 1 W
Bus and power connection type – Screw terminal block
Recommended wire cross-section with ferrules – 0.35–1 mm² (single wire), 0.35–0.5 mm² (double wire)
Tightening torque – 0.2 N·m
Operating mode – Continuous
Operating temperature range – 0 to +40 °C
Ingress protection rating – IP30
Weight (with packaging) – 85 g
Package contents – Box, device, cable
