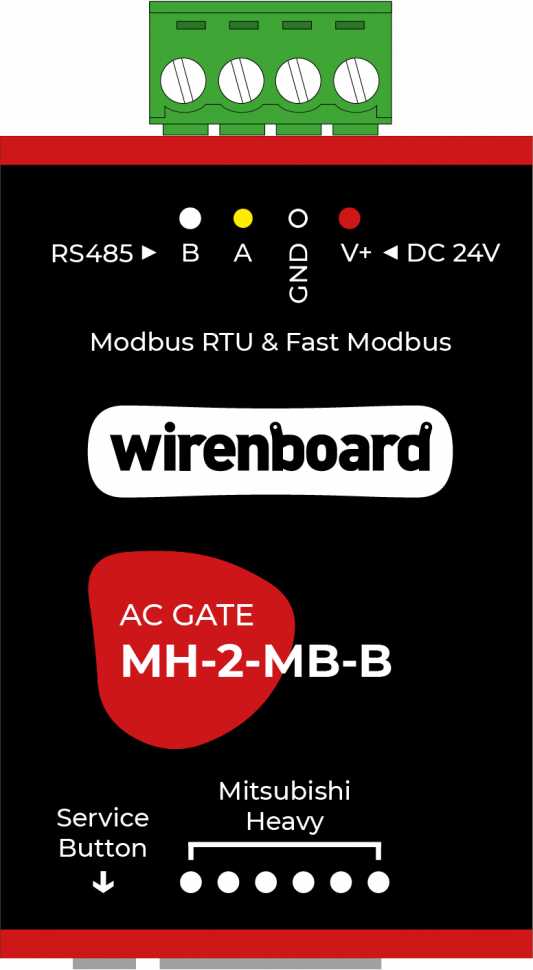

Mitsubishi Heavy Modbus RTU AC GATE
SKU code: WB-OK-MH-2-MB-B
SKU code: WB-OK-MH-2-MB-B
SKU code: WB-OK-MH-2-MB-B
Stock in Germany
Pre-order only
Stock in Switzerland
Pre-order only
We offer three delivery options:
- FCA – you pick up from us
- DAP – we deliver, you do customs in your country and
- DDP – we deliver and we do customs clearance
Wire transfers must be made net of all bank charges. Currently, w accept wired transfer only. For more payment options please contact us on sales@smartsd.ch
Order by phone+41 79 787-62-13
Gateway for control and dispatching of Mitsubishi Heavy air conditioning systems with CNS connector, operating via the Modbus RTU protocol with the option of control via Fast Modbus.
Compatible air conditioner types: wall-mounted, duct, floor-standing, multi-split, and semi-industrial units.
Works with Wiren Board controller and with Loxone (via Modbus extension).
Download register map for the WB-OK-MH-2-MB-B gatewayTechnical Specifications
- Interface – RS485
- Interface isolation – Galvanically isolated
- Protocol – Modbus RTU + Fast Modbus; address configured via software; factory settings indicated on the label
- Dimensions – 60×36×15 mm (L×W×H) without terminal block; 70×36×15 mm (L×W×H) with terminal block
- Power supply (recommended) – DC 24 V
- Baud rate – 9600 (default), 19200, 38400, 57600, 115200
- Stop bits – 2
- Parity bit – None (N)
- Power consumption – Max. 1 W
- Bus and power connection type – Screw terminal block
- Recommended wire cross-section with ferrules – 0.35–1 mm² (single wire), 0.35–0.5 mm² (double wire)
- Tightening torque – 0.2 N·m
- Operating mode – Continuous
- Operating temperature range – 0 to +40 °C
- Ingress protection rating – IP30
- Weight (with packaging) – 85 g
- Package contents – Box, device, cable
