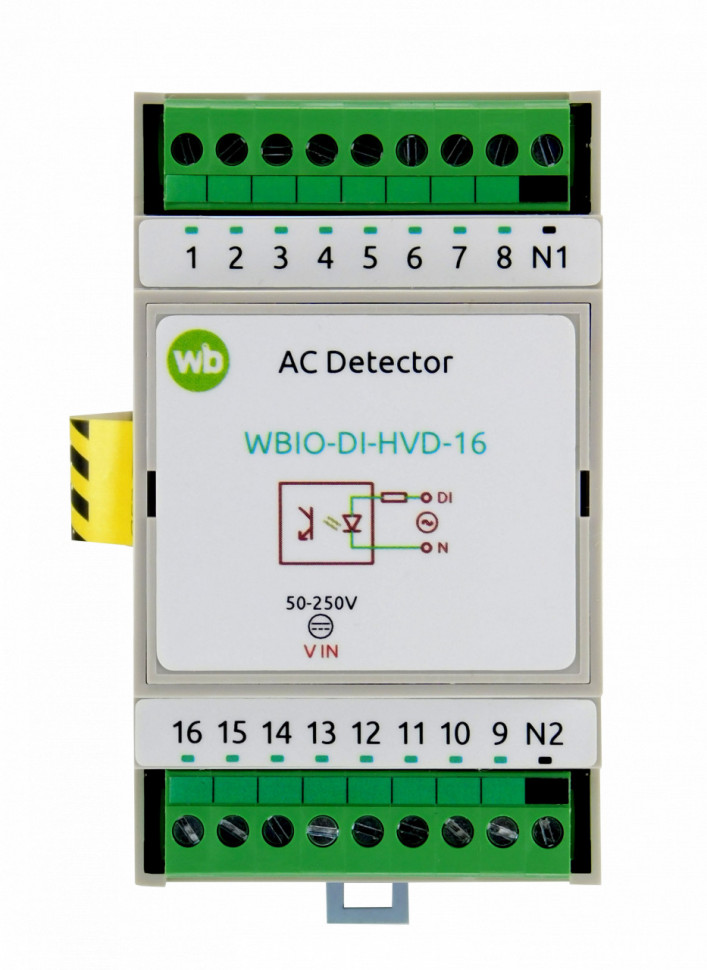

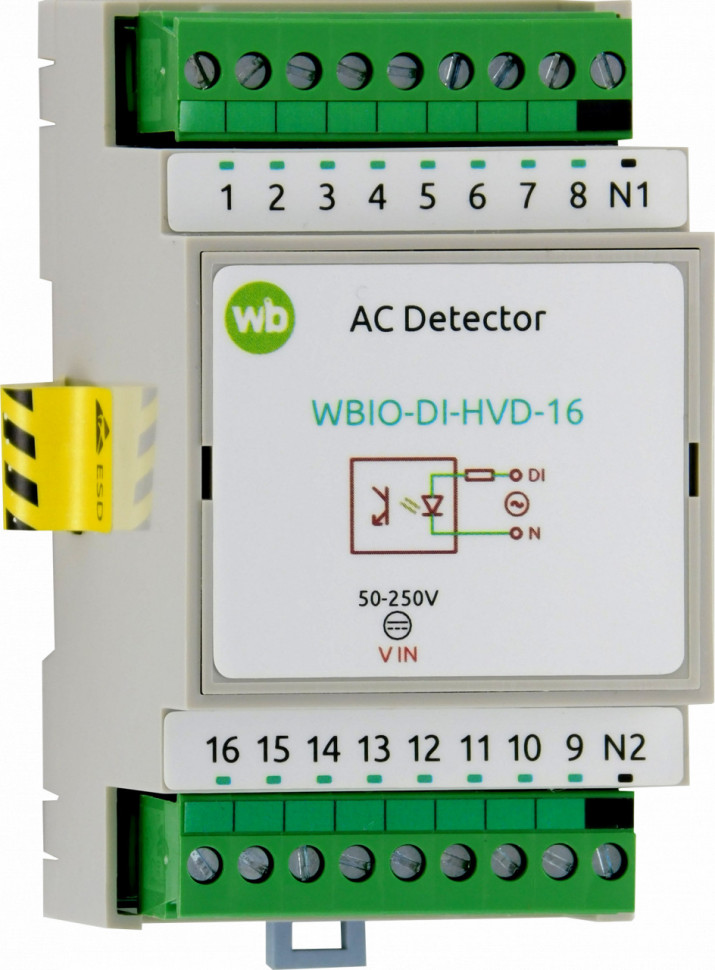

Wiren Board I/O module WBIO-DI-HVD-16
SKU code: WBIO-DI-HVD-16
Brand:
Wiren BoardSKU code: WBIO-DI-HVD-16
SKU code: WBIO-DI-HVD-16
Stock in Germany
Pre-order only
Stock in Switzerland
Pre-order only
We offer three delivery options:
- FCA – you pick up from us
- DAP – we deliver, you do customs in your country and
- DDP – we deliver and we do customs clearance
Wire transfers must be made net of all bank charges. Currently, w accept wired transfer only. For more payment options please contact us on sales@smartsd.ch
Order by phone+41 79 787-62-13
Designed for monitoring the status of circuit breakers, polling signal lamps etc.
Technical specifications
Discrete inputs
- 16 inputs
- Group galvanic isolation
- Inputs are triggered when sensing 230 VAC
- Triggering voltage >50VAC
Interfaces
- WBIO Bus
- Can be connected to Modbus RTU and Ethernet via the WB-MIO module
Compatibility
- Wiren Board 5 controllers
- Wiren Board 6 controllers
- Wiren Board 7 controllers
- Bus couplers WB-MIO and WB-MIO-E
Brand Wiren Board Weight 0.12 kg
