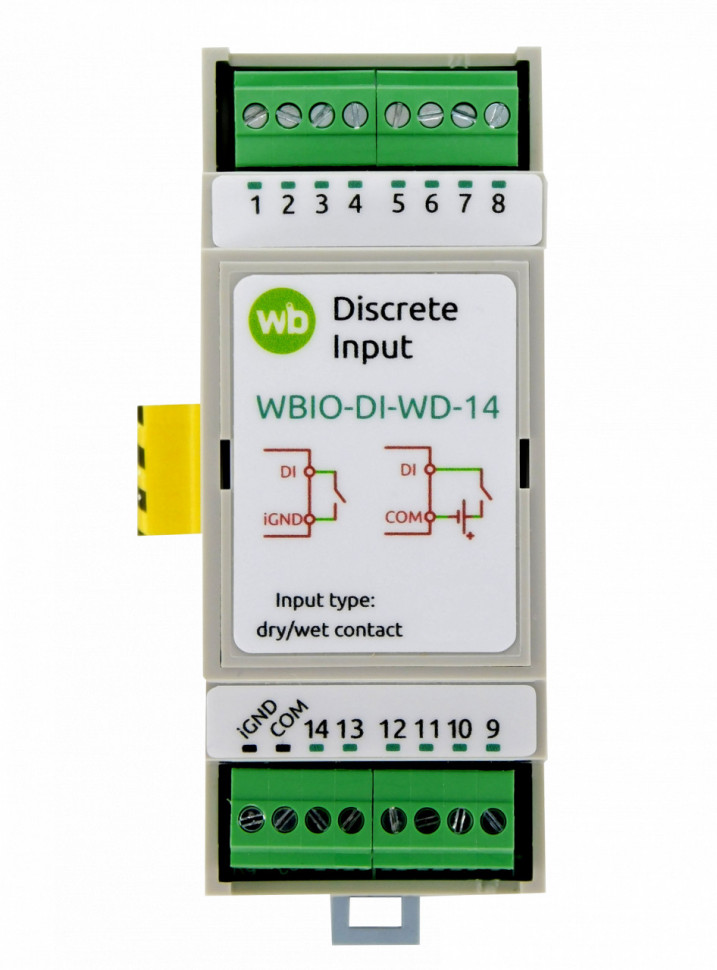

Wiren Board I/O module WBIO-DI-WD-14
SKU code: WBIO-DI-WD-14
Brand:
Wiren BoardSKU code: WBIO-DI-WD-14
SKU code: WBIO-DI-WD-14
Stock in Germany
Pre-order only
Stock in Switzerland
Pre-order only
We offer three delivery options:
- FCA – you pick up from us
- DAP – we deliver, you do customs in your country and
- DDP – we deliver and we do customs clearance
Wire transfers must be made net of all bank charges. Currently, w accept wired transfer only. For more payment options please contact us on sales@smartsd.ch
Order by phone+41 79 787-62-13

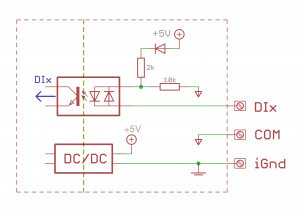

Consists of 14 universal inputs("dry contact" type/ low voltage presence with group galvanic isolation). The operating mode depends on the selected connection scheme. The module can operate in both modes simultaneously.
Technical specifications
Discrete inputs
- 14 inputs

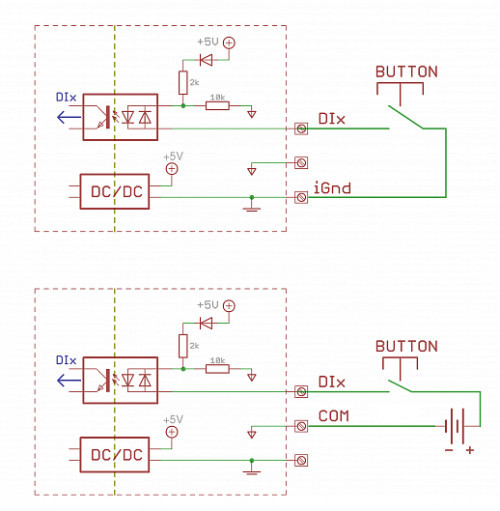

- 2 operating modes: dry contact/ voltage presence detection with group galvanic isolation
- Dry contact mode: inputs triggered when connected to the COM terminal. Triggering current is 1 mA
- Voltage presence detection mode: inputs are triggered when 12-24V AC/DC voltage is applied between the input and the iGND terminal. Voltage detection threshold is 9V. Maximum voltage is 50V
Interfaces
- WBIO Bus
- Can be connected to Modbus RTU and Ethernet by means of the WB-MIO(E) module
Compatibility
- Wiren Board 5 controllers
- Wiren Board 6 controllers
- Wiren Board 7 controllers
- Bus couplers WB-MIO and WB-MIO-E
Brand Wiren Board Weight 0.09 kg
