Wiren Board extension module WBC2-4G
SKU code: -
Brand:
Wiren BoardSKU code: -
SKU code: -
Stock in Germany
Pre-order only
Stock in Switzerland
Pre-order only
We offer three delivery options:
- FCA – you pick up from us
- DAP – we deliver, you do customs in your country and
- DDP – we deliver and we do customs clearance
Wire transfers must be made net of all bank charges. Currently, w accept wired transfer only. For more payment options please contact us on sales@smartsd.ch
Order by phone+41 79 787-62-13

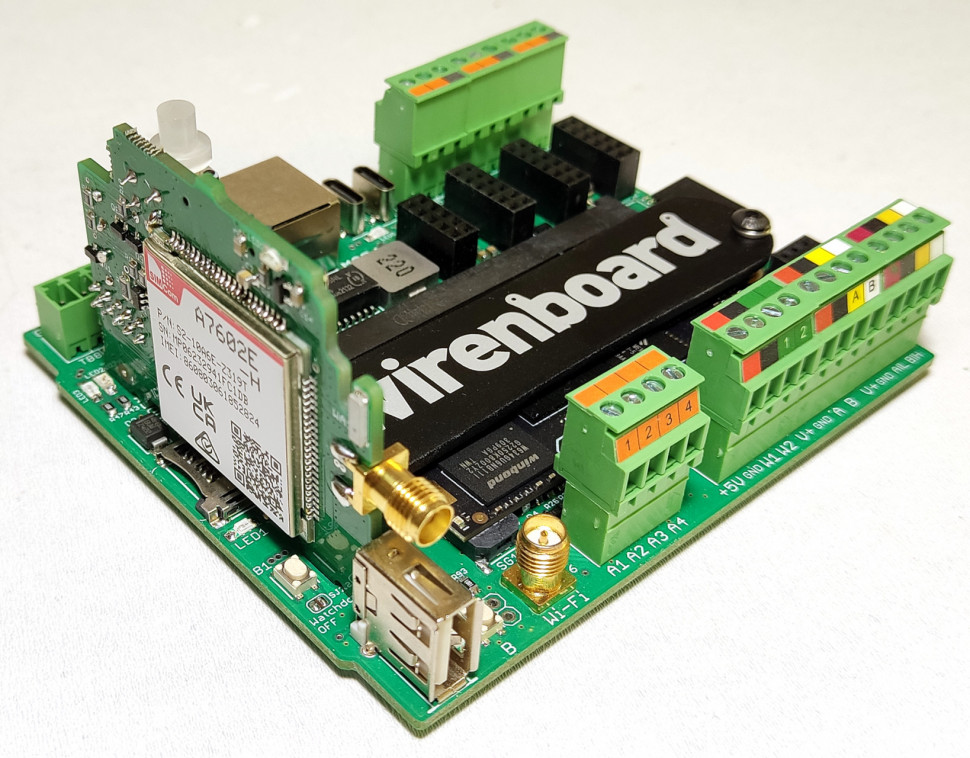

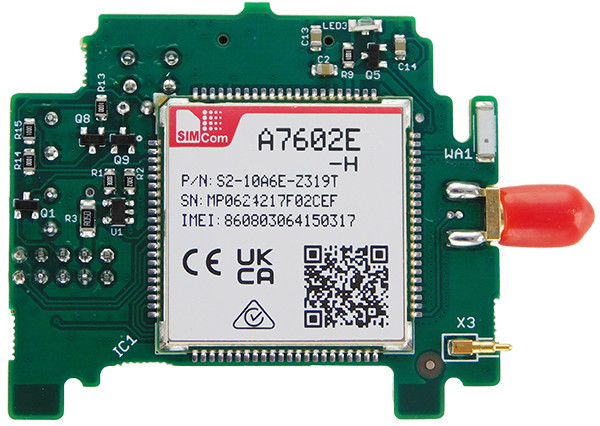

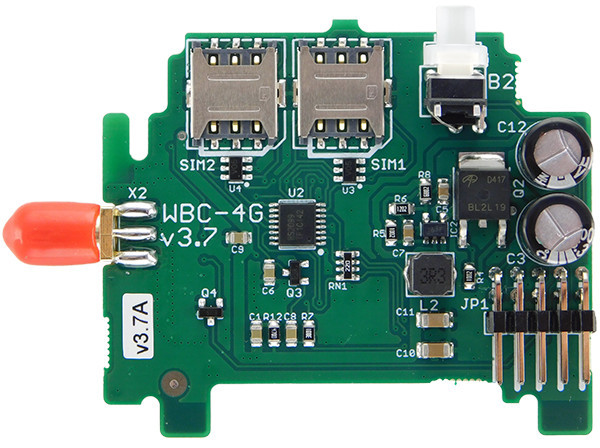

4G (LTE) modem for Wiren Board 7.4 and Wiren Board 8.x controllers. Installed inside the controller, the kit comes with an angled antenna with an SMA connector. Not suitable for other versions of the controller.
Technical Specifications
Main Features
- Data transmission speed — up to 150 Mbps
- Support for two nano-SIM cards
- Alternate operation mode
- Antenna included
Compatibility
- Controllers Wiren Board 8.x
- Controllers Wiren Board 7.4
Frequencies and Speeds
- Operating frequency ranges
- LTE-FDD B1, B3, B5, B7, B8, B20
- LTE-TDD B38, B40
- UMTS/HSPA 900/2100 MHz (B1, B8)
- GSM/GPRS/EDGE 900/1800 MHz
- Data transmission speed
- FDD-LTE Cat4 - up to 150 Mbps (download), up to 50 Mbps (upload)
- TDD-LTE Cat4 - up to 130 Mbps (download), up to 35 Mbps (upload)
- HSPA+ - up to 42 Mbps (download), up to 5.76 Mbps (upload)
- WCDMA - up to 384 kbps (download), up to 384 kbps (upload)
- EDGE - up to 236.8 kbps (download)
- GPRS - up to 85.6 kbps (download), up to 85.6 kbps (upload)
Brand Wiren Board Weight 0.09 kg
